SSM14124-01A vibration sensor

    . Axis: 1/2/3 axis
    . Range: 0~10mm/s,optional 0~25mm/s、0~50mm/s
    . Accuracy: ±0.01mm/s @≥10Hz bandwidth ; ±0.5mm/s @<10Hz bandwidth

  • INQUIRY

Features

      ²  Vibration speed range0~10mm/s0~25mm/s0~50mm/s (optional)

²  Vibration Velocity Resolution 5μm/sX\Y\Z axes can be combined arbitrarily

²  Built-in FFT real-time calculation

²  Frequency response 0.1~50Hz

²  Data refresh rate 0.01~50Hz

²  Small size, light weight

²  Adhesive, screw fixing

²  IP67 Protection

²  RS485 output



Application

Structural health monitoring of tunnels, roads, bridges, dilapidated buildings, factory buildings, ancient buildings, etc.



Specification



Vibration velocity   measurement

Measurement range

0~10mm/s,optional   0~25mm/s、0~50mm/s

Resolution

0.005mm/s @10Hz bandwidth

0.1mm/s @10Hz bandwidth

Accuracy

±0.01mm/s   @10Hz bandwidth

±0.5mm/s   @10Hz bandwidth

Temperature drift

0.001mm/s/@-20~+60

Bandwidth

0.1~50Hz

Measuring axis

Single axis, dual axis, triple axis

Interface

Output data

Vibration speed value, vibration main frequency   value

Output speed rate

0.01~50Hz

Interface

RS485

Modbus protocol

Power supply

Power supply

9~36VDC

Current consumption

20mA

Indicator lights and switches

Green light

always on when working normally, flashing when in   output process

Red light

error

Mechanical

Protection

IP67

Installation   method

Adhesive installation, base plate screw   installation

Material

Aluminum alloy

Dimensions

Ø65mmx60mm

Weight

300g

Environmental

Working temperature

-40~85

Working humidity

0~100%RH

Altitude

No limit

Reliability

Storage temperature

-40~85

salt spray

GB/T 2423.18-2012

Fall & shock

3m fall to concrete ground

vibration

2grms5~30Hz,half   sine

EMC

Electrostatic   discharge immunity, surge immunity, electromagnetic radiation immunity, DC   power supply test

Compliance

Common Criteria

GB/T 2423 Environmental reliability

GB/T17626 Electromagnetic Compatibility

Industry Standard

GBT14124-2009   Mechanical Vibration and Shock Vibration in Buildings: A Guide to Vibration   Measurements and Evaluation of Their Effects on Buildings

GB50452-2008T   Technical specification for anti-industrial vibration of ancient buildings

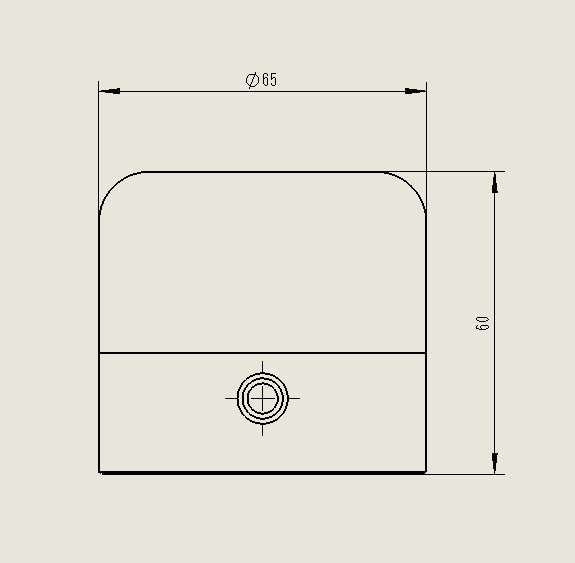

 Dimensionsmm
