MEMS Inclinometer

SSM7001A Tower Motion Sensor

    . Axis: 1 or 2 axis
    . Range: ±60°
    . Accuracy: ±0.01°
    . Resolution: ±0.0025°

  • INQUIRY

Features

²  Monitoring functions: vertical angle and shaking motion of telecom tower

²  RS485 output

²  Four alarm thresholds can be set

²  Low cost, high stability and reliability

²  Outdoor application

²  Simple installation, free maintenance

Application

Telecom tower monitoring system

Descriptions

SSM7001A tower motion sensor adapts MEMS accelerometers and gyroscopes with advanced strap-down technology and FFT technology, to on-line monitoring the telecom tower moving status with any harsh working condition. This sensor output:

n  Six monitoring data: tower azimuth angle, tilt direction, tilt angle, horizontal deviation displacement(refer to tower vertical position), shaking amplitude and frequency

n  Four settable warning thresholds:horizontal deviation displacement, tilt angle, shaking amplitude, shaking frequency.

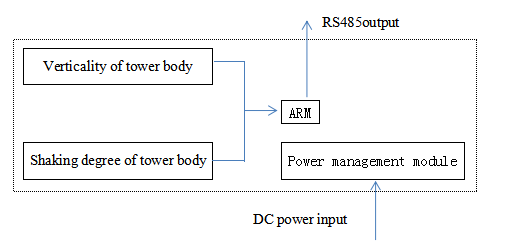

Principle block diagram of sensor

Measuring Performances

Type

performances

Resolution

Accuracy

input to sensor(Manually)

Tower azimuth angle

0.1°

2°

Installation height

0.01m

0.1m

Software version

——

——

Manufacturer code

——

——

Equipment model

——

——

Measuring data

Tilt angle(±90°range)

0.01°

0.05°

Tilt direction angle

0.01°

0.1°

Horizontal deviation displacement

5mm

2cm

Shaking amplitude

1cm

5cm

Shaking frequency

0.1Hz

0.1Hz

Alarm thresholds

Horizontal deviation

cm

1/75×height

Tilt angle

°

1

Shaking amplitude

cm

5

Shaking frequency

Hz

0.5

Alarms

Horizontal deviation warning

——

Alarm 1,Normal 0

Tilt warning

——

Alarm 1,Normal 0

Shaking amplitude warning

——

Alarm 1,Normal 0

Shaking frequency warning

——

Alarm 1,Normal 0



Other performances

Mechanical

Protection

IP67

Dimensions

90×54×33.5mm

Housing

Die casting aluminum

Weight

300g

Electrical

Power supply

9~36VDC

Power consumption

80mA@24VDC

Output interface

RS485 Modbus(HEX)

Connecting

M12-5Pin socket

Environmental

Operation temperature

-40~70

humidity

0~100%RH

Altitude

<5000m

Reliability

Storage temperature

-40~85

Shock

3m Fall to concrete floor

 (excluding   connector)

Vibration

2grms,5~30Hz,half-sine

EMC

Electrostatic   discharge immunity, Surge immunity, Electromagnetic radiation immunity, DC   power supply test

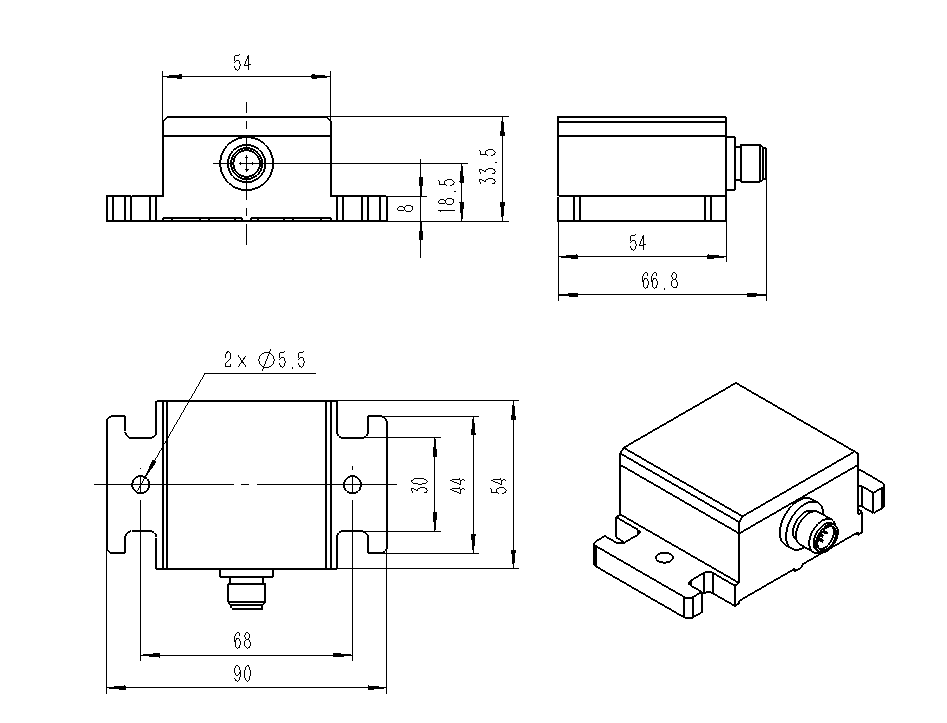

Dimensions(mm)

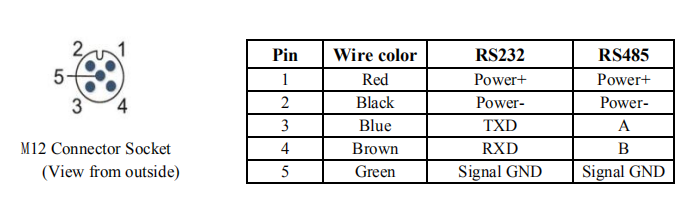

Wirings


Ordering

Product

Model

Tower motion sensor

SSM7001A

Cable

2m cable (customizable) with plug
